LOWER TRANSFER PORTS
LEFT CYLINDER

LOWER TRANSFER PORTS LEFT CYLINDER

BEAU de ROCHA FUNCTIONS / ATTRIBUTES

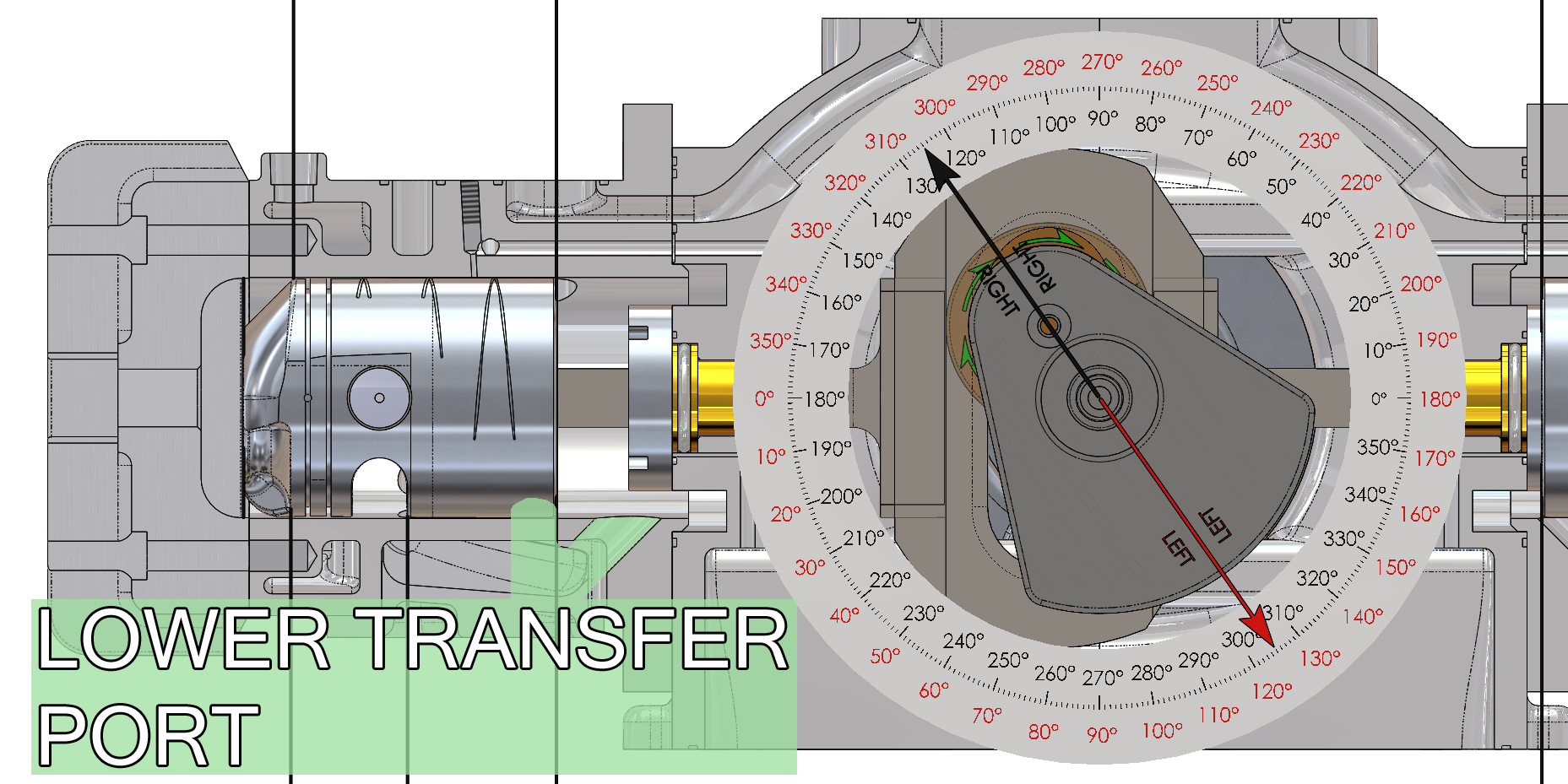

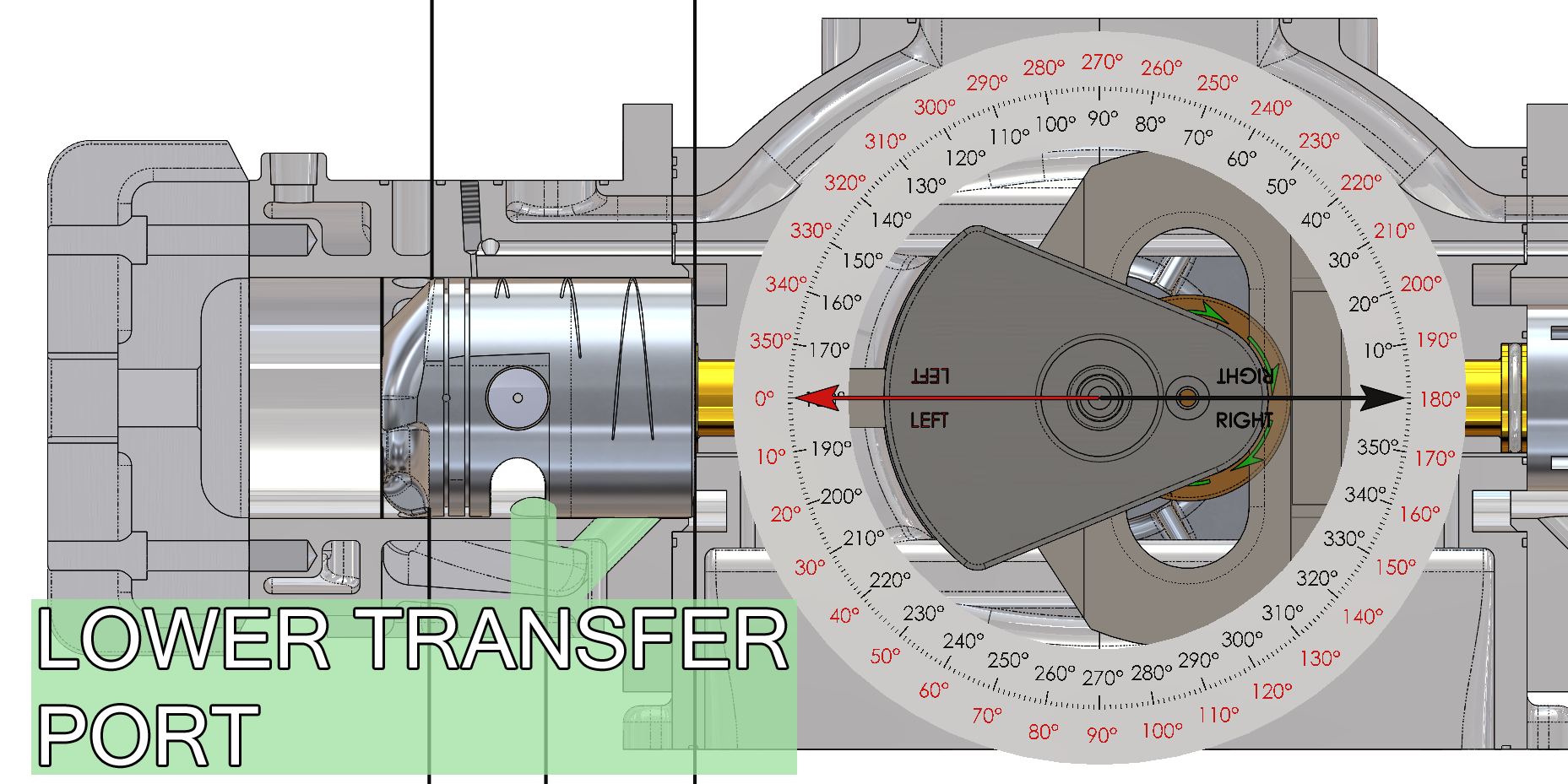

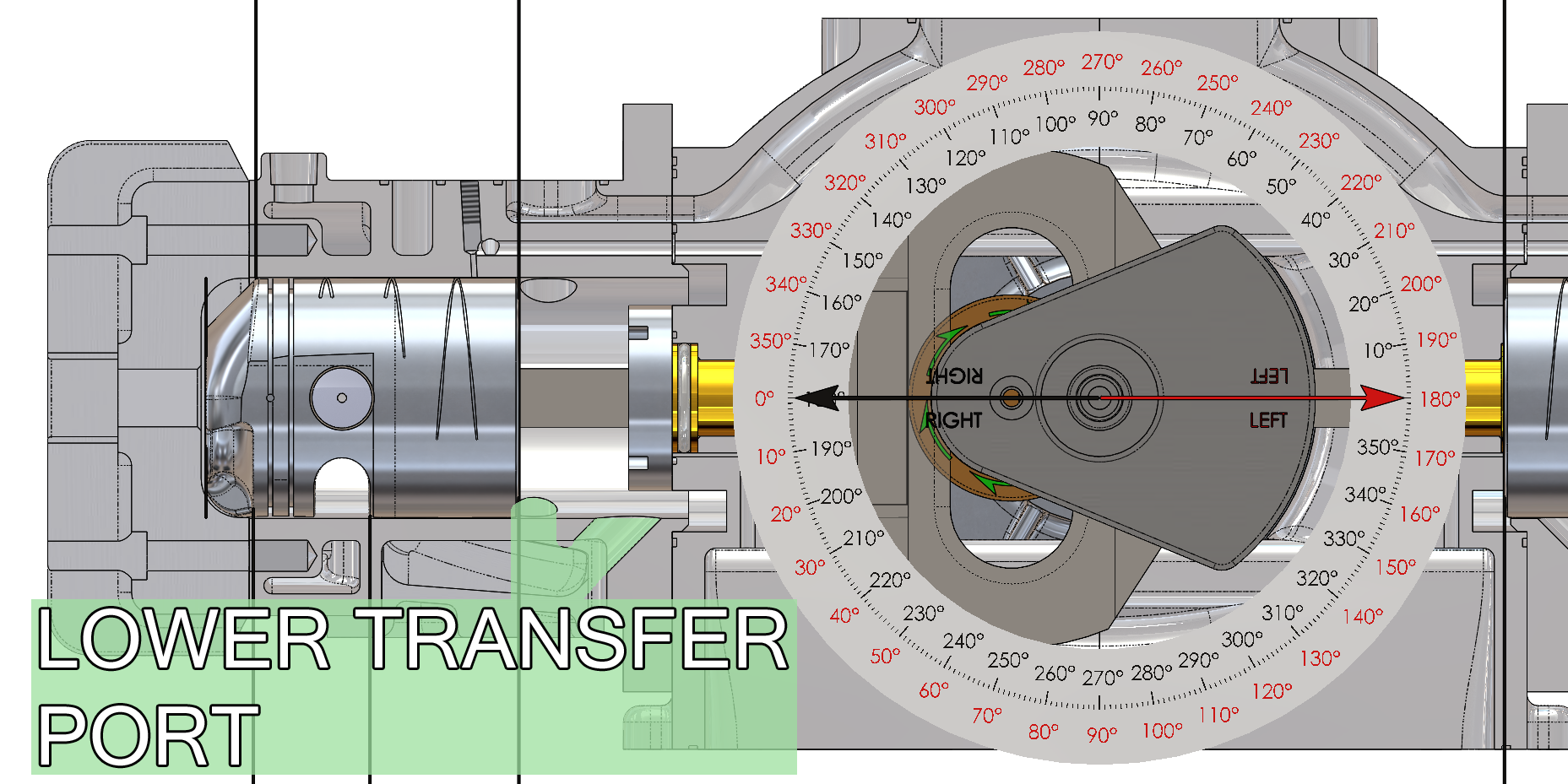

The lower transfer ports are opened by the piston skirt/window for 360 degrees of crankshaft travel (red arrow and red degree compass on the animation). The lower transfer ports are equal in area to the exhaust port area and are arranged in a triangular formation to prevent “shocking” the incoming fresh air/fuel mixture (the transfer area is always at or near the same pressure as the pressure under the piston as the piston seals off the intake ports and compresses the fresh air/fuel mixture underneath the piston against the crankcase facing). The following function that Beau de Rocha identified in 1862 has been accomplished:

  • Intake (from under the piston to the combustion chamber)


RUSSELL BOURKE’S FORMULA

  • Port openings are arranged so that as the bottom port of the triangle is closing, the two (2) window ports are opening (red arrow and red degree compass on the animation). The triangular arrangement is duplicated from Russell Bourke’s 30 cid marine engine because the 10 cid unit is a high speed engine (12,000 rpm) whereas the 400 cid engine was a low speed engine (1,800 rpm) and did not have the triangular configuration.

All of the volumes shown below for the 10.842 cubic inch (177.6748 cc) model were calculated using Solid Works:

  • The volume under the piston when it is at Top Dead Center (TDC) is 166.478 cubic centimeters (cc), or 10.1591 cubic inches.
  • The volume under the piston when it is at Bottom Dead Center (BDC) is 88.7875 cc, or 5.4181 cubic inches.
  • The volume in the combustion area when the piston is at Bottom Dead Center (BDC) is 88.8374 cc, or 5.4212 cubic inches.
  • The volume in the combustion area when the piston is at Top Dead Center (TDC) is 7.2358 cc, or 0.4416 cubic inches.

The compression ratio for this model is calculated by dividing the volume at BDC by the volume at TDC (88.8374 cc/7.2358 cc =12.28:1 compression ratio).
